Sub Category
Strip Fixture
Additional Info
Other DLC Listings: S-9FLKU1, Standard, Direct Linear Ambient Luminaires; S-RH9PMZ, Standard, Low-Bay Luminaires for Commercial and Industrial Buildings.
Bulb Shape1
Integrated LED
Color Temperature
Neutral White to Daylight
Warranty
5 Year Limited - Fixtures
Amps
0.250-0.108/0.333-0.144/0.417-0.181A
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium; Standard; Standard
DLC Primary Use
Stairwell and Passageway Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires
Efficacy
130.00/133.13/135.00 LPW
Feature 1
CCT & Wattage Selectable
Feature 2
Flicker Free Driver
Feature 4

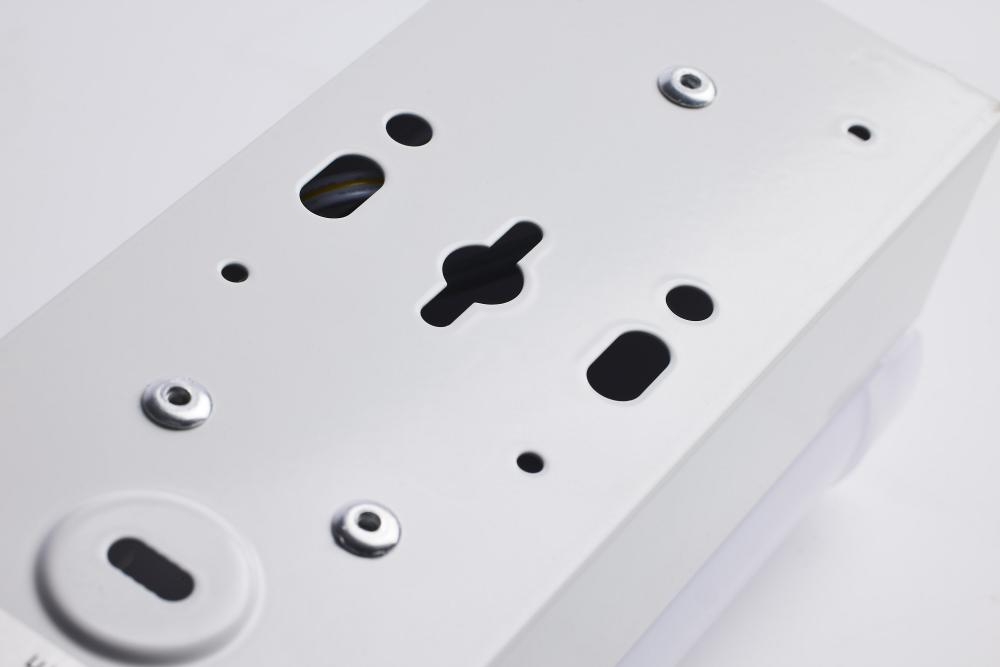

Multiple Mounting Options
Feature 6
Integrated Microwave Sensor
Feature 7
Ultra Slim Design
Incandescent Equivalent
150W-175W
Lens Material
Polycarbonate (PC)
Long Description

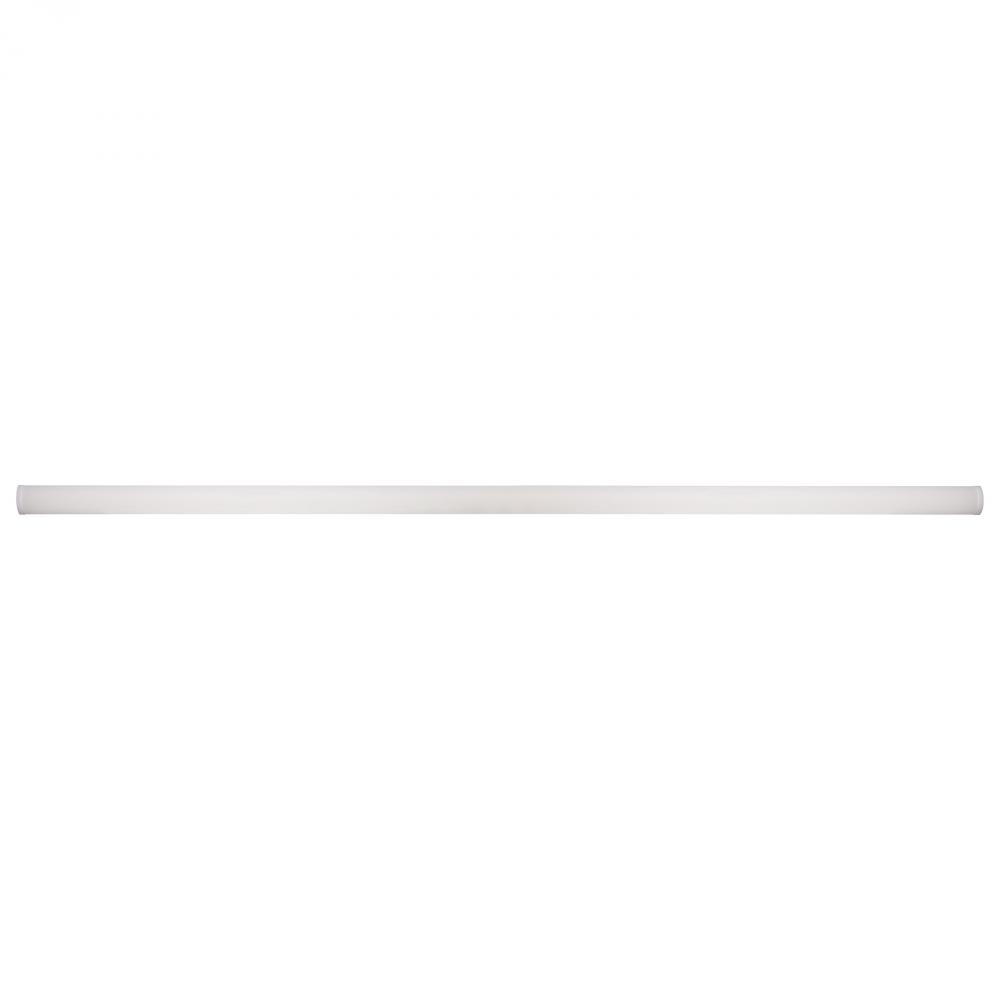

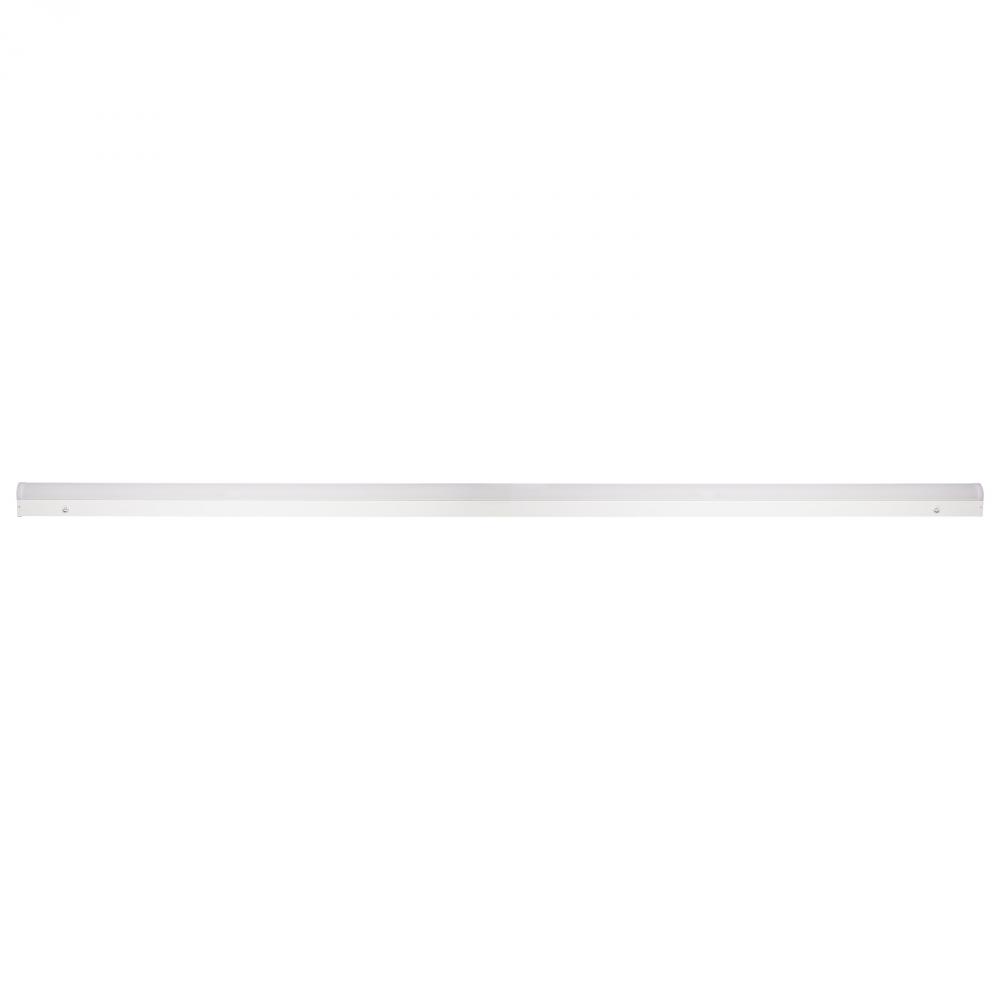

The SATCO|NUVO 65-1702 LED 8-foot Linear Strip Fixture features an integrated microwave sensor for added energy efficiency and savings. With 3-CCT selectable options - 3500K, 4000K, 5000K and 3-Wattage options - 30W, 40W, 50W - the user can tailor the ligh
Mounting Procedure
Ceiling/Wall
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +60C (+140F)
Photocell
Optional Add-On
Replaceable Light Source
No
Romance Copy
SATCO|NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes. These fixtures provide flexibility with 3-CCT selectable options - 3500K, 4000K, and 5000K - allowing the user to tailor the lighting to their specific needs and preferences. Select mod
Safety Listing
cULus - Listed
Short Description
8' LINEAR STRIP W/SENSOR
Temperature (CCT)
3500K/4000K/5000K
Total Harmonic Distortion
10.77%
