Product Overview

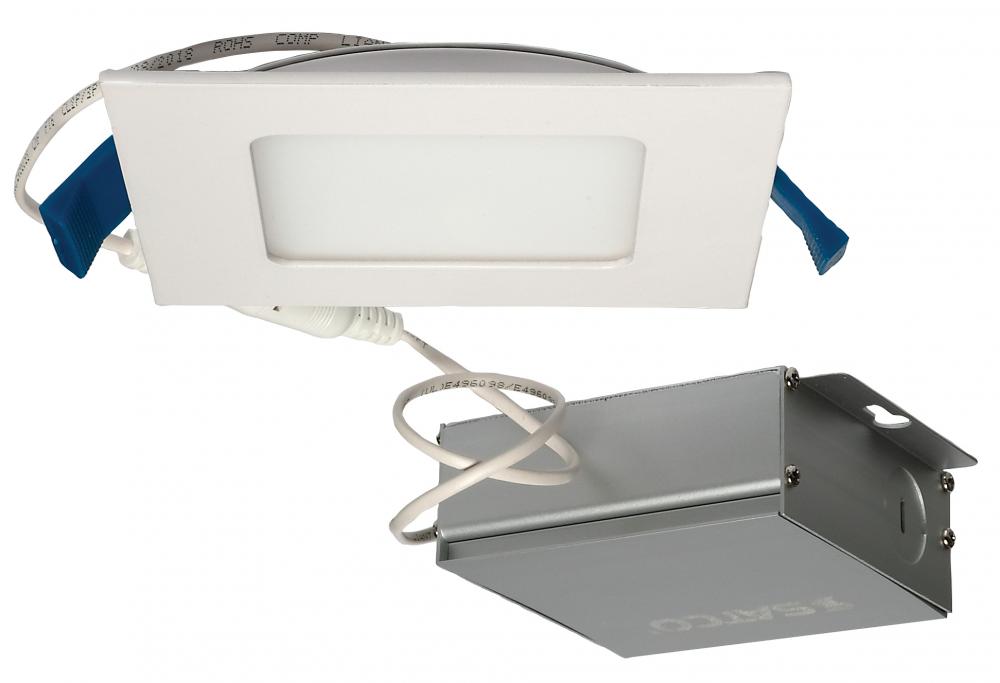

10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 5000K; 120 volt; Dimmable; Square; Remote Driver

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Additional Info:

Integrated j-box for direct wire installation

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Dimmable:

Yes-Dimmable

Each Height:

5.39

Each Length:

6.65

Each Width:

2.13

Length:

4.75

Lumens:

620L

Tariff Code:

9405.40.6000

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.083A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

108

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

4.125 in. Cutout

Clearance Height:

2

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Each Cube:

0.0442

Each Quantity:

1

Efficacy:

62.00 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Square

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

Installation Notes:

**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Material:

Aluminum

Max Drywall Thickness:

5/8 in.

Mounting Procedure:

Ceiling

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

Rec Spacing Between Fixtures:

3 ft. to 4 ft.

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

10WLED/DW/EL/4/950/SQ/RD

Sloped Ceiling Compatible:

No

Temperature (CCT):

5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.82

Manufacturer Info

Manufactured By:

Satco Products Inc.
