Product Overview

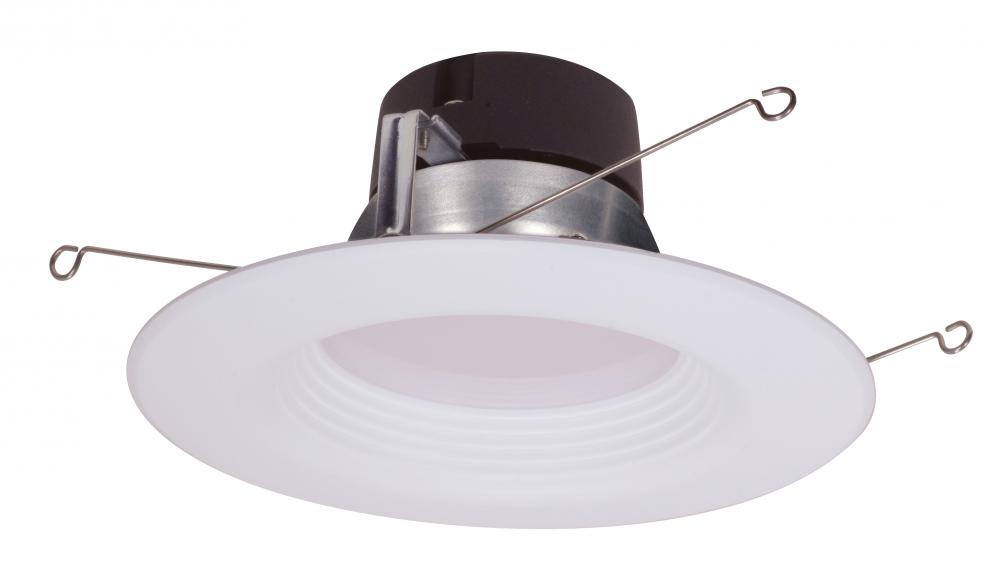

17watt LED Downlight Retrofit; 5"-6"; 4000K; 120 volts; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Style:

Contemporary

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Contemporary

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Diameter:

7.41

Dimmable:

Yes-Dimmable

Each Height:

8.07

Each Length:

9.06

Each Width:

3.94

Lumens:

1260L

Tariff Code:

9405.40.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.142A

ANSI Base:

E26 Adapter

BAA Compliant:

No

Beam Angle:

90

CA Prop-65:

Lead

Can Size:

5-6 in.

CCT Selectable:

No

CEC:

T20 Non-Compliant - LPW <80

CEC Alt Sub:

S11825R1

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Each Cube:

0.1667

Each Quantity:

1

Efficacy:

74.12 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Round

Incandescent Equivalent:

90W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Mounting Procedure:

Ceiling

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.98

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cULus - Classified;cULus - Certified

SDS class:

LED_Fixture

Short Description:

17WLED/RDL/5-6/40K/120V

Temperature (CCT):

4000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No

Manufacturer Info

Manufactured By:

Satco Products Inc.
