Product Overview

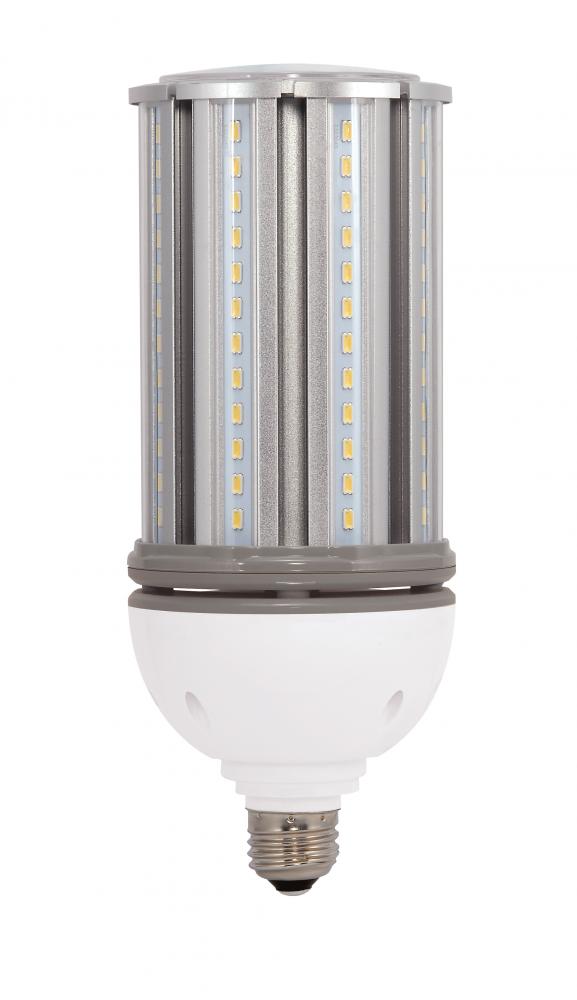

36 Watt - LED HID Replacement; Amber; Medium base; 100-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

3300+

Kelvin:

2000-2500

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

1461K

Bulb Shape:

Corncob

Diameter:

3.69

EA Length:

3.66

Harmonized Codes:

8539.52.0091

Length:

9.25

Lumens:

4140L

Shap Carton Width:

3.66

Ship Carton Height:

10.16

Ship Weight:

2

Warranty:

5 Year Limited - Hi-Pro

AC/DC:

AC 90-305V

Additional Info:

Amber color - 585nm

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass- Direct wire only 100V-277V

Beam Spread:

300

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.0788

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

China

DLC Approved:

No

Efficacy:

115.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

55W

HID Equivalent:

150W

Housing Color:

White/Grey

Incandescent Equivalent:

200W

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP65

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Location Rating:

Damp

Material:

Aluminum / Plastic

Minimum Compartment Size:

Length: 17.3 in. Width: 9.25 in. Depth: 9.25 in.

Operating Frequency:

50-60Hz

Operating Temp:

-20C (-4F) to +65C (+149F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

36W/LED/HID/AMBER/100-277V E26

Style:

Contemporary

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

36W

Country of Origin- China

Manufacturer Info

Manufactured By:

Satco Products Inc.
