Product Overview

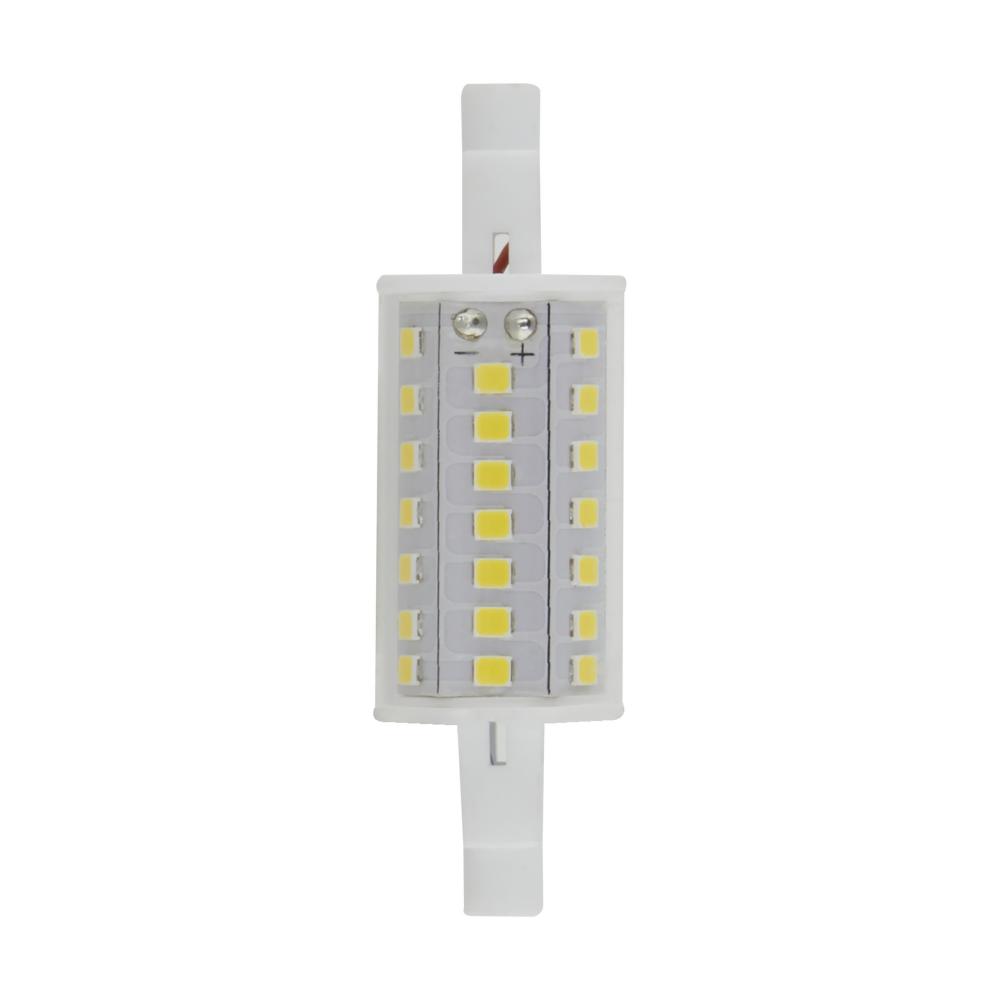

6 Watt LED Bulb; J-Type T3 78mm; 120 Volt; R7S Base; 3000K; Double Ended; 200 Degree Beam Angle

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

450-800

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

LED J-Type

Volts:

120V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

15000

Bulb Kelvin:

3000K

Bulb Shape:

T3

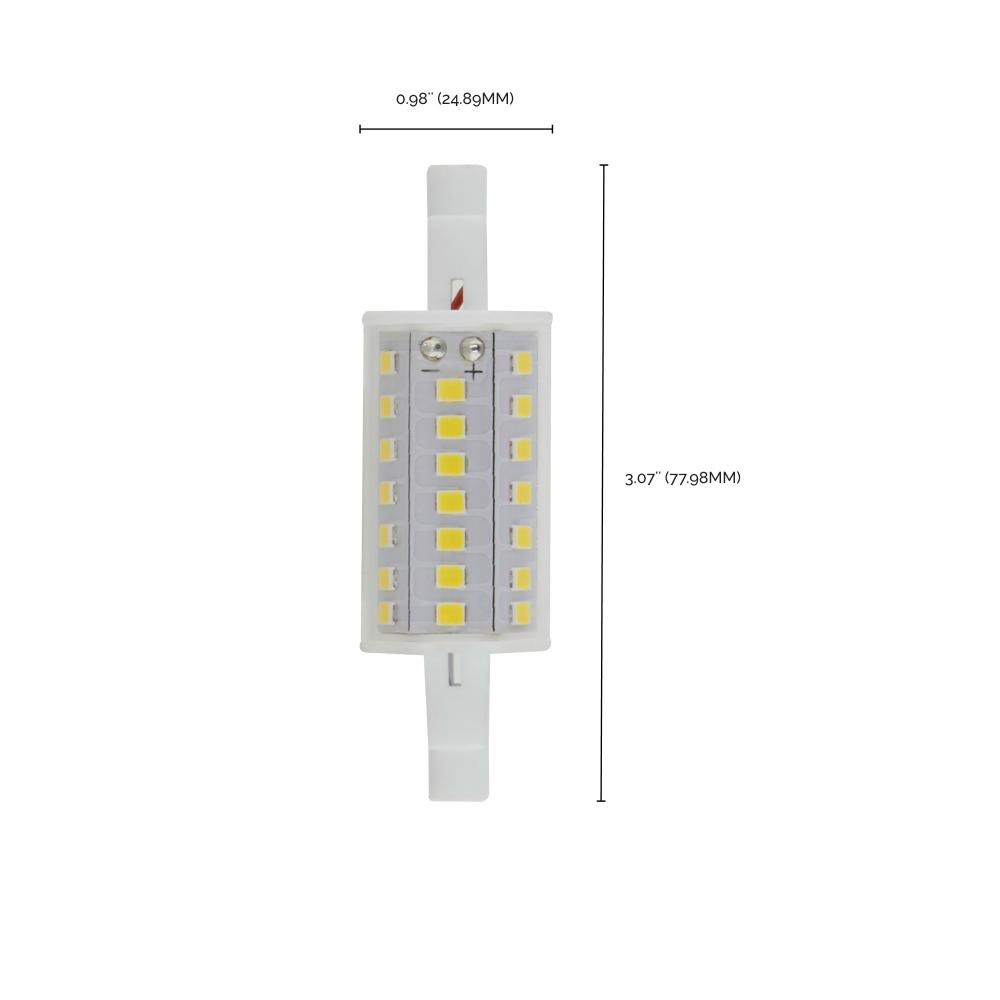

Diameter:

0.98

EA Length:

0.2

Harmonized Codes:

8539.52.0091

Length:

3.07

Lumens:

600L

Shap Carton Width:

3.7

Ship Carton Height:

5.51

Ship Weight:

0.09

Warranty:

3 Year Limited

Weight:

0.04

BAA Compliant:

No

Beam Spread:

200

Bulb ANSI Base:

R7s

Bulb Base:

Double Ended Recessed Single Contact

Bulb Finish:

Clear

Burning Position:

Universal

Candle Power:

70

Carton Cubic Feet:

0.0024

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

DLC Approved:

No

Efficacy:

100.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Damp location rated

Feature 2:

Enclosed fixture rated

Feature 3:

Dimmable

Feature 4:

cULus listed

Feature 5:

Long life -- 15000 hours

Feature 6:

Operating temperature: -20C (-4F) to a maximum of 45C (113F)

HID Equivalent:

75W

Housing Color:

White

Incandescent Equivalent:

40W

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

JA8 Compliant:

No

Lamp Filament:

LED

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Location Rating:

Damp

Long Description:

Satco's S11220 6-watt LED J-type direct halogen replacements help to provide bright, efficient lighting indoors and outside. Illuminate homes, offices, walkways, and paths with this double ended bulb. This dimmable bulb has a 200 degree beam spread and

Material:

Polycarbonate (PC)

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Clamshell

Power Factor:

0.7

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Satco's 6-watt LED J-type direct halogen replacements help to provide bright, efficient lighting indoors and outside. Illuminate homes, offices, walkways, and paths with this double ended bulb. This dimmable bulb has a 200 degree beam spread and is rat

SDS class:

LED_Lamp

Short Description:

6W/LED/T3/78MM/830/120V/D R7S

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

6W

Country of Origin- China

Manufacturer Info

Manufactured By:

Satco Products Inc.
