6.5 Watt LED Downlight Retrofit; 4 Inch Baffle; CCT Selectable; 12 Volts; Matte White Finish (40UU34K)
6.5 Watt LED Downlight Retrofit; 4 Inch Baffle; CCT Selectable; 12 Volts; Matte White Finish
Product Specification
Item #
40UU34K
Dimensions
Height: 2.98"
Width: 5.31"
Additional product details
Internal #
40UU34K
Category
Recessed Ltg.
Subcategory
Recessed Lighting Trims
Finish
White
Option
LED
, Prop 65
Category
Recessed
Sub Category
Retrofits
Style
Utility
Additional Info
The dimming control will depend on the Driver or transformer that is been used, as an example if a magnetic Tramformer is being used it will require an LV dimmer (for example Lutron DVLV-600P-WH) if an Electronic transformer is being used it will require a
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Diameter
5.31
Dimmable
Yes-Dimmable
Each Height
5.51
Each Length
5.51
Each Width
3.15
Lumens
600L
Tariff Code
8539.52.0091
Warranty
3 Year Limited - Fixtures
Air Tight
No
Amps
0.560A
ANSI Base
GU5.3
Beam Angle
85
CA Prop-65
Lead
Can Size
4 in.

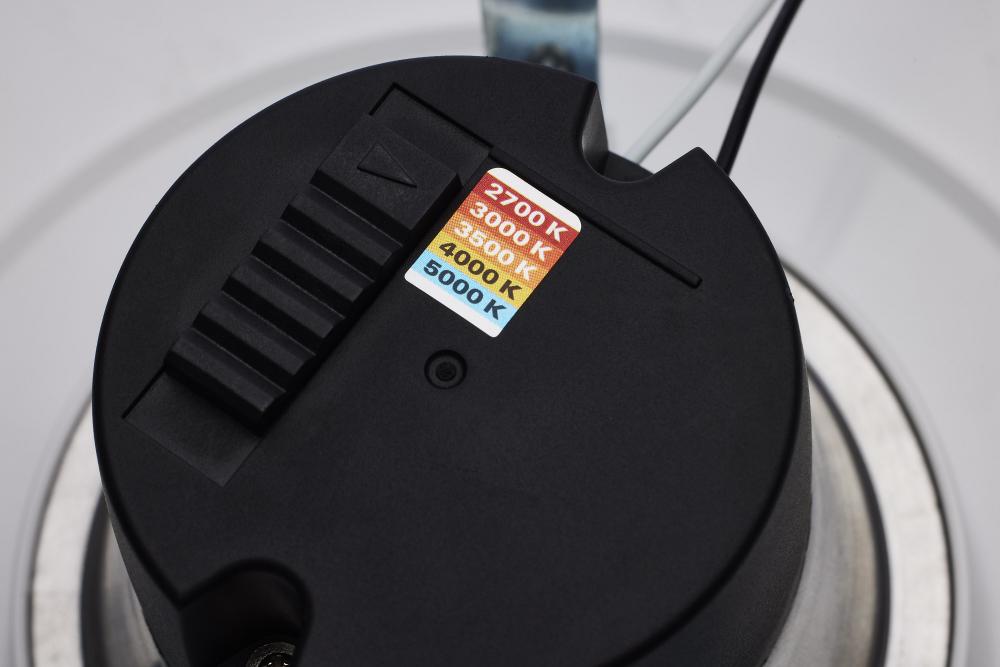

CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 10 percent
Dimming Type
Phase cut
Each Cube
0.0553
Each Quantity
1
Efficacy
92.31 LPW
FCC Compliant
Yes
Feature 1
CCT Selectable
Feature 2
Non-Conductive Dead-Front Trim
Feature 3

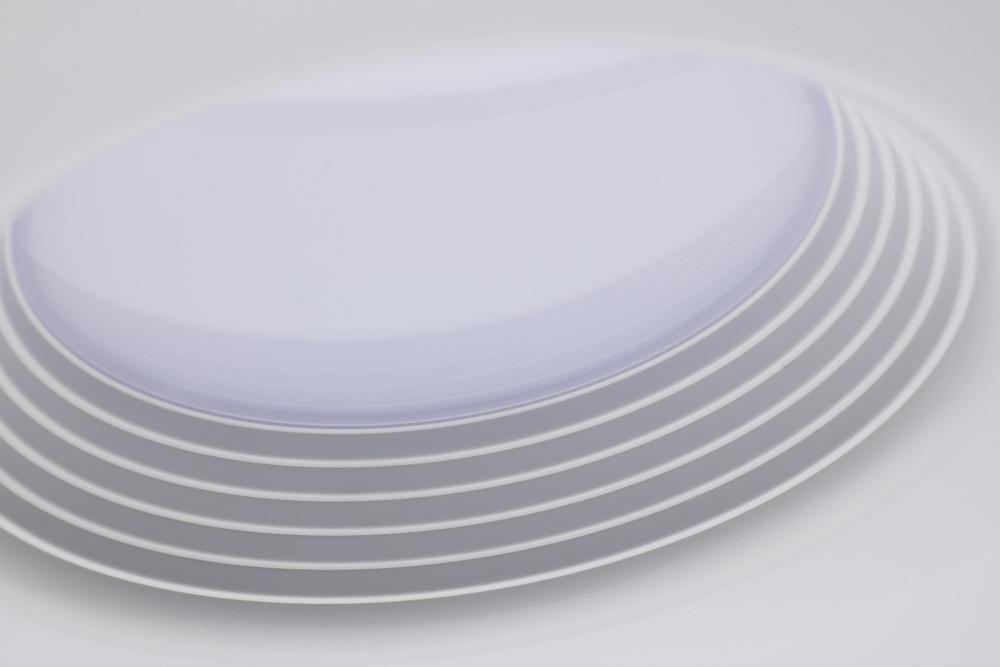

Stepped Baffle for Reduced Glare
Feature 4
Dimmable
Feature 5

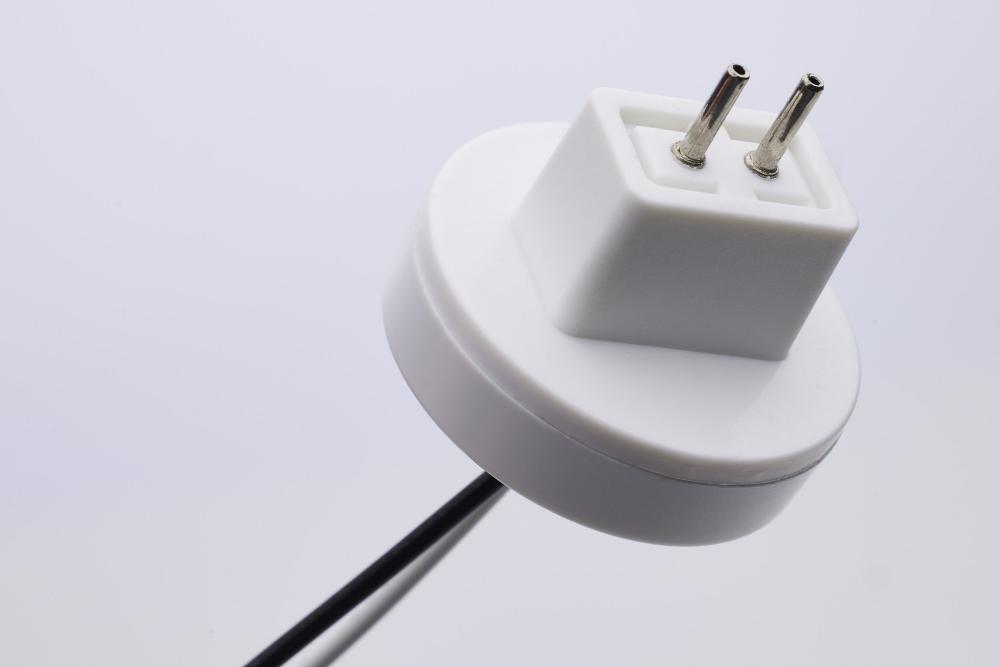

GU5.3 Bi-Pin Base for MR16 Retrofits
Feature 6
Wet location rated
Feature 7
50,000 Hour Functional Life
Finish Family
White
IC Rated
No
Incandescent Equivalent
50W
Indoor Outdoor
Indoor
JA8 Compliant
No
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's S11838 offers a hassle-free solution with its 12 volt, 4-inch Retrofit Downlight, ideal for upgrading MR16 recessed luminaries in any space. Engineered with low voltage and an attached GU5.3 base, this fixture is designed to replace older,
Material
Polycarbonate (PC)
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Color Box
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO offers a hassle-free solution with its 12 volt, 4-inch Retrofit Downlight, ideal for upgrading MR16 recessed luminaries in any space. Engineered with low voltage and an attached GU5.3 base, this fixture is designed to replace older, higher watta
Safety Listing
cETLus - Classified
Short Description
6.5WLED/DLR/BFL/4/CCT-SEL/12V
Sloped Ceiling Compatible
No
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
34.03%
Trim Color
Matte White
Trim Material
Polycarbonate (PC)
Wattage Selectable
No
Weight Lb.
0.3
Finish
Additional options that would change other selections
Call for Price
BASE PRICE:
$
20
95
/
/ 1
($20.95 / 1)
