Product Overview

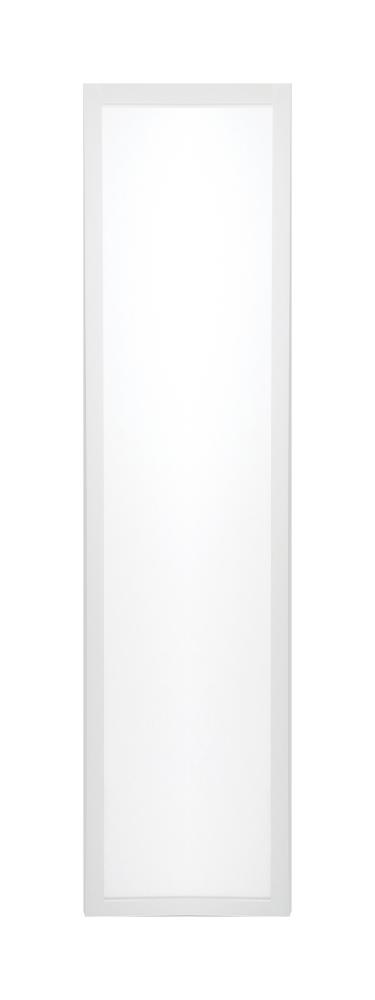

LED Emergency Backlit Flat Panel; 40 Watt; 1 ft. x 4 ft.; Selectable CCT; 100-277 Volt

Standard Information

Category:

Specialty Items

Subcategory:

Lighting Accessories

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Flat Panel

Sub Category:

Backlit

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

13.39

Each Length:

49.02

Each Width:

2.56

Length:

47.72

Lumens:

4400L-4600L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Wire Length:

3.54

Air Tight:

No

Amps:

0.400-0.144A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Standard

DLC Primary Use:

1x4 Luminaires for Ambient Lighting of Interior Commercial Spaces

Each Cube:

0.9724

Each Quantity:

1

Efficacy:

110.00/112.50/115.00 LPW

FCC Compliant:

Yes

Feature 1:

Select from 3 color temperatures, 3500K, 4000K, and 5000K

Feature 2:

ColorQuick Technology

Feature 3:

Damp rated for indoor use

Feature 4:

L:47.72 inches; W:11.84 inches; H:1.50 inches

Feature 5:

90 Minute Battery Run Time

Finish Family:

White

Fixture shape:

Rectangle

Flicker Free:

Yes

Has Emergency Battery:

Yes

IC Rated:

Yes

Incandescent Equivalent:

200W

Indoor Outdoor:

Indoor

IP Rating:

IP20

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO NUVO's 65-577 1X4 LED Backlit Flat Panel EM battery backup fixture offers CCT selectability. With Back-lit LED Technology and 90 Minute running time, this fixture is sure to meet all of your safety needs.

Material:

Aluminum / Steel

Mounting Procedure:

Ceiling

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Panel Size:

1x4

Photocell:

No Photocell

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

17

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 1X4 LED Backlit Flat Panel EM battery backup fixture offers CCT selectability. With Back-lit LED Technology and 90 Minute running time, this fixture is sure to meet all of your safety needs.

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

1X4 LED EM BACKLIT FLAT PANEL

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

14%

Wattage Selectable:

No

Weight Lb.:

4.98

Wire Gauge:

14

Wire Temp Rating:

80C (176F)

Manufacturer Info

Manufactured By:

Nuvo
