Product Overview

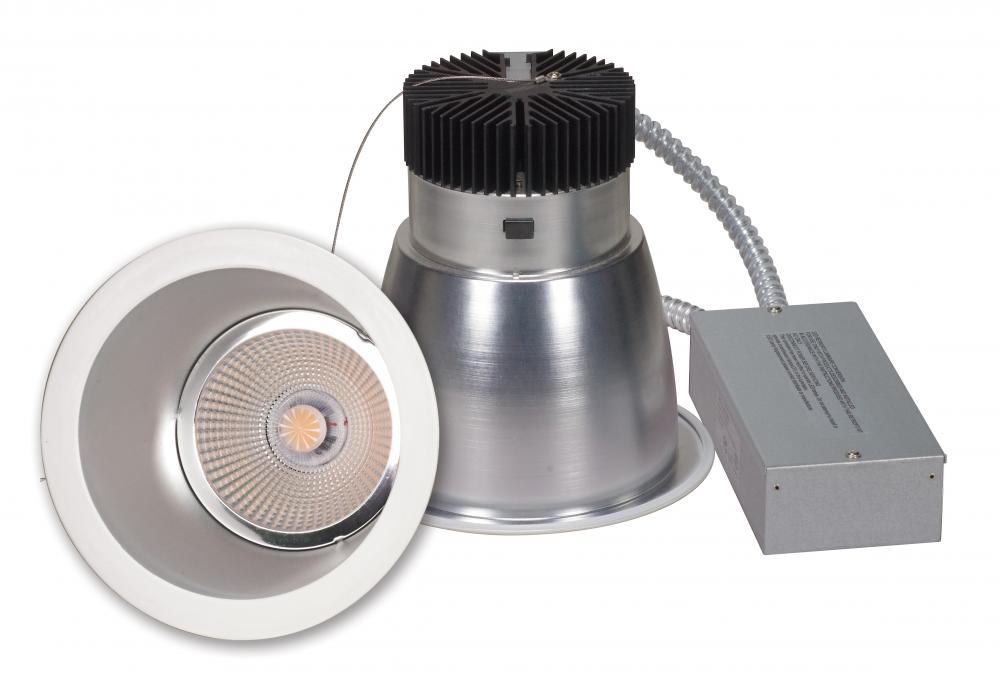

25 watt Commercial LED Downlight Retrofit; 6 inch; 4000K; 100-277 volts

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

Silver

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Commercial

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Diameter:

7.5

Dimmable:

Yes-Dimmable

Each Height:

9.84

Each Length:

10.04

Each Width:

7.87

Lumens:

1900L

Tariff Code:

9405.40.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.250-0.090A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

40

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Each Cube:

0.4499

Each Quantity:

1

Efficacy:

76.00 LPW

FCC Compliant:

Yes

Finish Family:

Silver

Fixture shape:

Round

Flr Equiv:

2 x 18W CFL

Incandescent Equivalent:

150W

Indoor Outdoor:

Indoor

Installation Notes:

6 in. min. to 6.7 in. max. mounting frame diameters

JA8 Compliant:

No

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.91

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cULus - Classified;cULus - Certified

SDS class:

LED_Fixture

Short Description:

25WLED/CDL/6/4K/100-277

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Trim Color:

Silver

Wattage Selectable:

No

Weight Lb.:

3.79

Manufacturer Info

Manufactured By:

Satco Products Inc.
