Product Overview

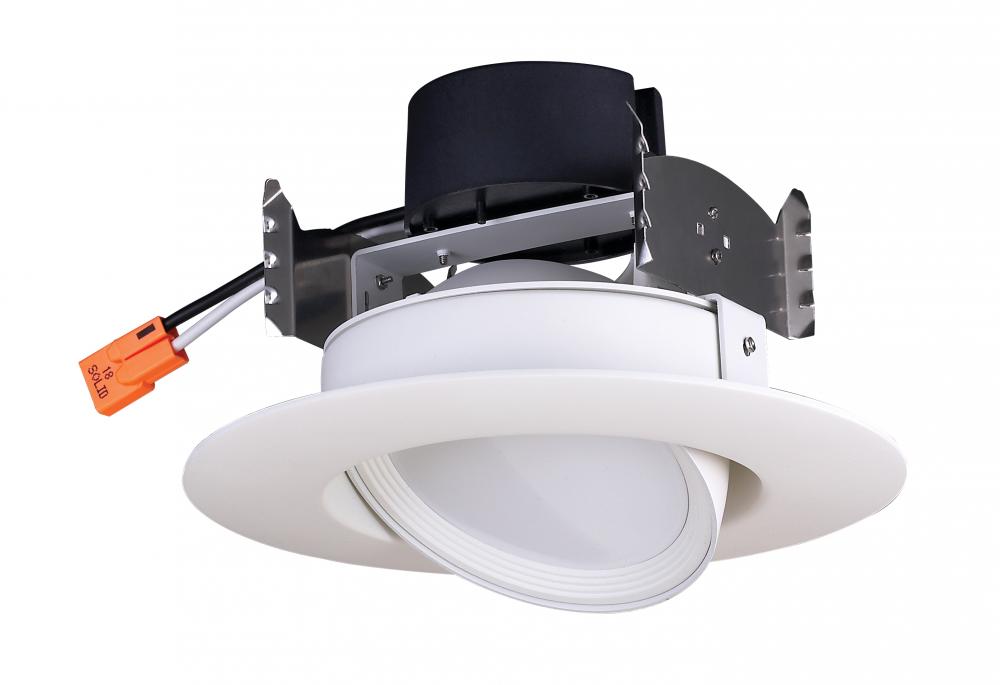

7 watt LED Directional Retrofit Downlight - Gimbaled; 4"; 3000K; 40' Beam spread; 120 volts; Dimmable; White Finish

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Additional Info:

Trim material is Thermo Plastic; Trim color is White

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Diameter:

6

Dimmable:

Yes-Dimmable

Each Height:

6.69

Each Length:

6.53

Each Width:

3.94

Lumens:

600L

Tariff Code:

8539.50.0091

Warranty:

5 Year Limited - Fixtures

Amps:

0.058A

ANSI Base:

E26 Adapter

BAA Compliant:

No

Beam Angle:

40

CA Prop-65:

Lead

Can Size:

4 in.

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Each Cube:

0.09959999999999999

Each Quantity:

1

Efficacy:

85.71 LPW

FCC Compliant:

Yes

Feature 1:

Warm white light

Feature 2:

LED Directional

Feature 3:

Damp rated for indoor use

Feature 4:

H:3.47 D:6.00

Feature 5:

Round, White/Frosted

Finish Family:

White

Fixture shape:

Round

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Long Description:

Satco's S39464 7-watt, 4 inch LED retrofit downlight, features a gimbaled trim and is directional, allowing for focused lighting wherever you need it. The fixture offers warm white light and a 40 degree beam angle. Dimmable and energy efficient, this f

Material:

Thermo Plastic (PBT)

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 7-watt, 4 inch LED retrofit downlight, features a gimbaled trim and is directional, allowing for focused lighting wherever you need it. The fixture offers warm white light and a 40 degree beam angle. Dimmable and energy efficient, this fixture

Safety Listing:

cULus - Classified;cULus - Certified

SDS class:

LED_Fixture

Short Description:

7WLED/DIR/4/40'/30K/120V

Temperature (CCT):

3000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.86

Manufacturer Info

Manufactured By:

Satco Products Inc.
