Product Overview

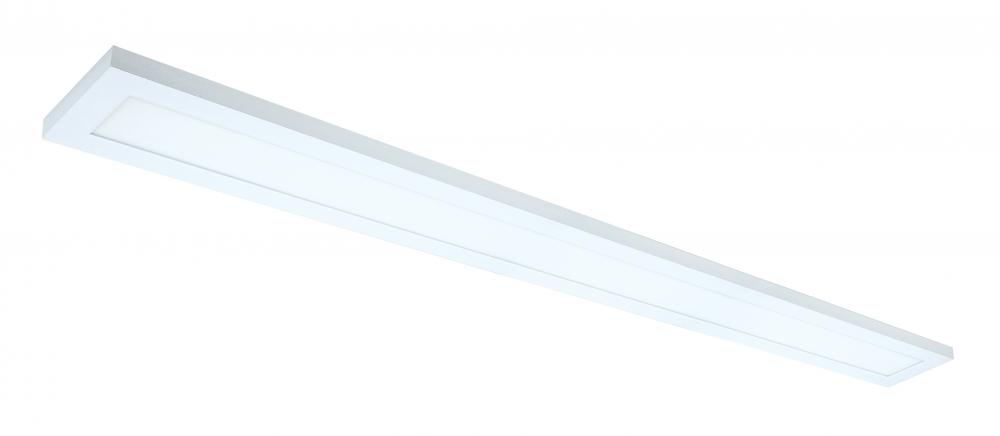

40W; 5.5 in.; x 48 in.; Surface Mount LED Fixture; 5000K; 80 CRI; Low Profile; White Finish; 120/277V

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Close-to-Ceiling

Sub Category:

Edge Lit

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Dimmable:

Yes-Dimmable

Each Height:

8.27

Each Length:

48.82

Each Width:

2.48

Length:

48

Lumens:

3300L

Tariff Code:

9405.11.8020

Warranty:

5 Year Limited - Fixtures

Amps:

0.333/0.144A

ANSI Base:

Integrated

BAA Compliant:

No

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Closet Rated:

Yes

Connection:

Direct Wired

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

120V only

Dimming Type:

Reverse Phase or Phase Selectable

Each Cube:

0.5794

Each Quantity:

1

Efficacy:

82.50 LPW

FCC Compliant:

Yes

Feature 1:

Length: 48.00 inches, Width: 5.50 inches, Height: 0.75 inches

Feature 2:

Dimmable

Feature 3:

White Finish

Feature 4:

5000K Natural White Light

Feature 5:

3300 lumens

Feature 6:

Damp location rated for indoor use

Feature 7:

Easy installation

Feature 8:

FCC and RoHS compliant

Feature 9:

5 year limited warranty

Finish Family:

White

Fixture shape:

Linear

Incandescent Equivalent:

175W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Long Description:

Satco's 62-1157 40 watt, 48 inch by 5.5 inch LED surface mount fixture is a sleek lighting solution for commercial or residential applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this low profile, dimmable surface

Material:

Aluminum

Mounting Procedure:

Ceiling

NEC Compliance:

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency:

50/60Hz

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.8

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 40 watt, 48 inch by 5.5 inch LED surface mount fixture is a sleek lighting solution for commercial or residential applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this low profile, dimmable surface mount i

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

40W/LED/5"X48"/FLUSH/5K/WH

Temperature (CCT):

5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Wattage Selectable:

No

Weight Lb.:

5.23

Manufacturer Info

Manufactured By:

Nuvo
