Product Overview

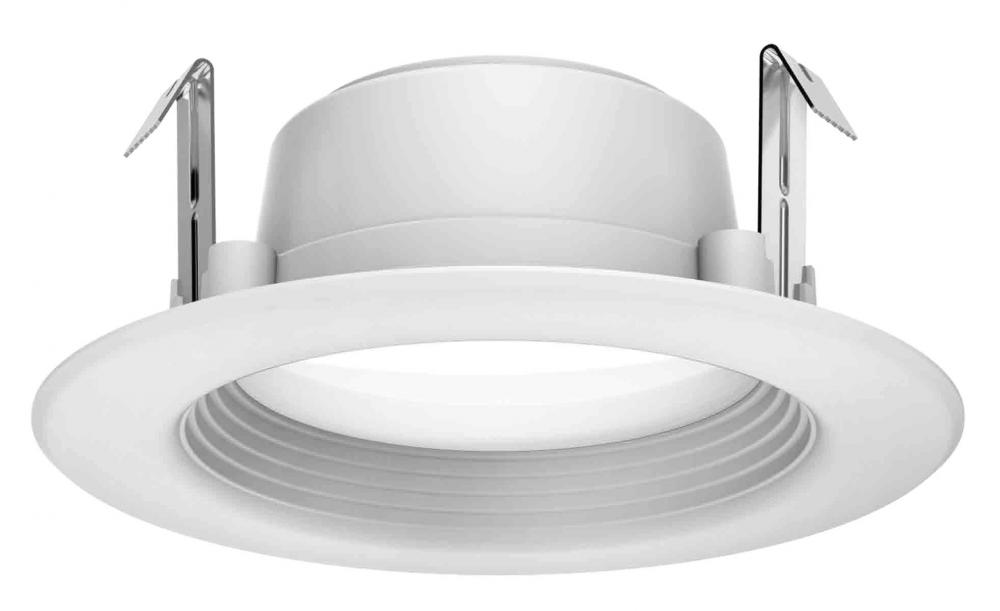

7 watt LED Downlight Retrofit; 4"; 5000K; 120 volts; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Bulbs

Other Recessed Ltg.

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

5501-6000

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Additional Info:

Trim material is Thermo Plastic; Trim color is White

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Diameter:

5.31

Dimmable:

Yes-Dimmable

Each Height:

5.91

Each Length:

5.51

Each Width:

2.69

Lumens:

600L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.058A

ANSI Base:

E26 Adapter

Beam Angle:

90

CA Prop-65:

Lead

Can Size:

4 in.

CCT Selectable:

No

CEC:

T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Each Cube:

0.0507

Each Quantity:

1

Efficacy:

85.71 LPW

FCC Compliant:

Yes

Feature 1:

Natural light

Feature 2:

Wet rated for indoor use

Feature 3:

H:2.88 D:5.31

Feature 4:

Dimmable

Feature 5:

Round, White and Frosted Finish

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Long Description:

SATCO NUVO's S39716 7-watt, 4 inch LED retrofit downlight, offers natural light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and long lasting,

Material:

Thermo Plastic (PBT)

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.74

Quantity In Pack:

1

R9 Value:

62

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 7-watt, 4 inch LED retrofit downlight, offers natural light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and long lasting, this d

Safety Listing:

cULus - Classified;cULus - Certified

SDS class:

LED_Fixture

Short Description:

7WLED/RDL/4/50K/120V

Temperature (CCT):

5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.33

Manufacturer Info

Manufactured By:

Satco Products Inc.
