Product Overview

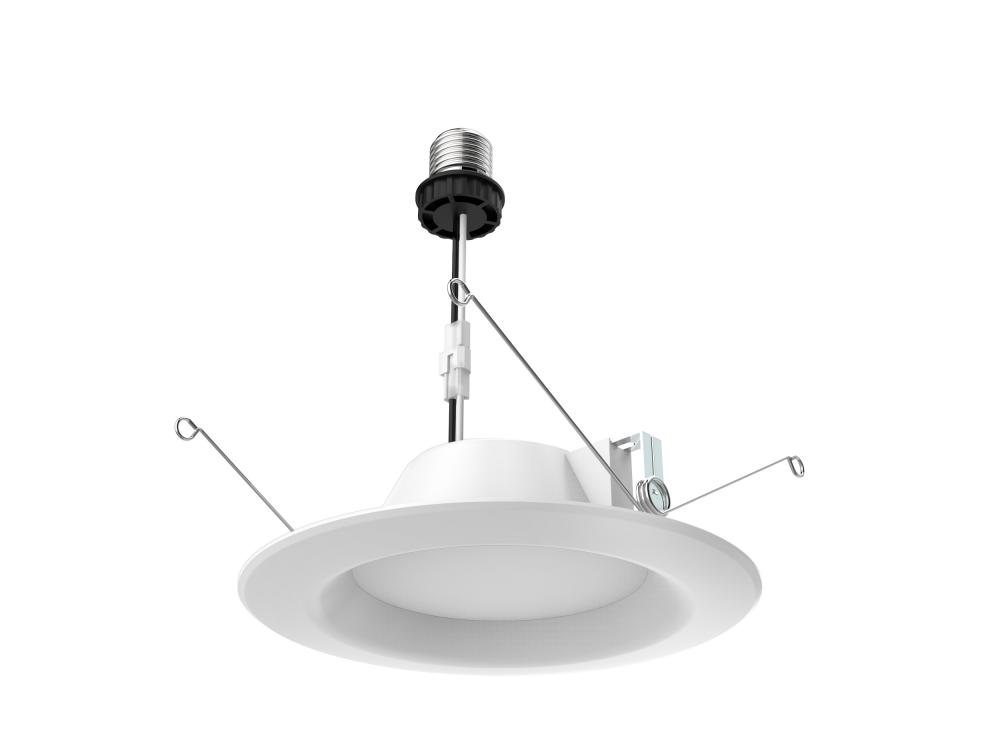

9.8 watt LED Downlight Retrofit; 5 - 6"; 2700K; Dimmable; 120 volts

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Bulbs

Other Recessed Ltg.

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Additional Info:

Trim material is Thermo Plastic; Trim color is White

Avg Rated Hours:

35000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Diameter:

7.38

Dimmable:

Yes-Dimmable

Each Height:

8

Each Length:

2.75

Each Width:

8.25

Lumens:

650L

Tariff Code:

8539.52.0091

Warranty:

5 Year Limited - Fixtures

Amps:

0.082A

ANSI Base:

E26 Adapter

BAA Compliant:

No

Beam Angle:

90

CA Prop-65:

Lead

Can Size:

5-6 in.

CCT Selectable:

No

CEC:

T20 Non-Compliant - LPW <80

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Connection:

Connector or Adapter

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Each Cube:

0.105

Each Quantity:

1

Efficacy:

66.33 LPW

FCC Compliant:

Yes

Feature 1:

Fits 5 to 6 inch downlights

Feature 2:

White Finish

Feature 3:

5 year limited warranty

Feature 4:

650 lumens

Feature 5:

Dimmable

Feature 6:

2700K Warm White Light

Feature 7:

Superior 90 CRI light quality

Feature 8:

Rated for 35,000 hours

Feature 9:

FCC and RoHS compliant

Finish Family:

White

Fixture shape:

Round

Incandescent Equivalent:

65W

Includes:

E26 Adapter

Indoor Outdoor:

Indoor

Installation Notes:

This retrofit is for use with recessed housings with an E26 socket only.

JA8 Compliant:

No

Long Description:

Satco's S29312 9.8 watt, LED downlight retrofit is an easy to install lighting solution for commercial applications. Illuminate offices, retail spaces, and hotels, with this dimmable, contemporary, downlight retrofit. Round, with a white finish, this d

Material:

Thermo Plastic (PBT)

Mounting Procedure:

Ceiling

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.96

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 9.8 watt, downlight retrofit is an easy to install lighting solution for commercial applications. Illuminate offices, retail spaces, and hotels, with this dimmable, contemporary, downlight retrofit. Round, with a white finish, this downlight de

Safety Listing:

cULus - Classified;cULus - Certified

SDS class:

LED_Fixture

Short Description:

9.8WLED/RDL/5-6/27K/120V

Temperature (CCT):

2700K

Title 20 Compliant:

No

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.88

Manufacturer Info

Manufactured By:

Satco Products Inc.
